Tutorial 2 - Data extraction with a complex semi-structured layout

View source on GitHub.

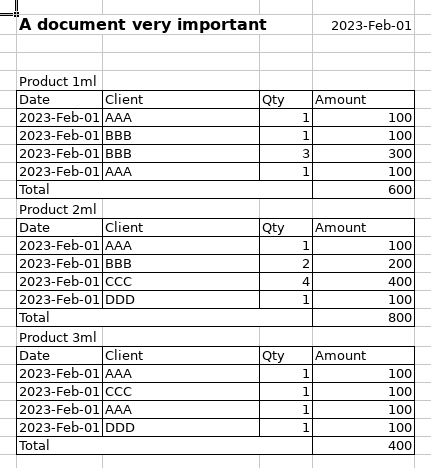

This tutorial will demonstrate how to use PyArchery to extract data from one Excel spreadsheet. To demonstrate the usage of this framework, we will load a document with a somewhat complex layout, as seen here:

Setup PyArchery

Import the package:

import pyarchery

Minimal code

The minimal code to load a document is as follow:

with pyarchery.load(file_path, encoding="UTF-8") as doc:
    for sheet in doc.sheets():
        table = sheet.getTable()
        if table.isPresent():
            table = table.get()
            doSomethingWithHeaders(table.headers())
            doSomethingWithRows(table.rows())

The encoding ("UTF-8" here) is used if the encoding could not be detected when loading the document.

Load base model

To parse a document, PyArchery needs a model that will contains the parameters required to the parsing. Instead to start /from an empty Model, we will start from an existing one and we will adapt it for our document. You can find a list and details of all models here.

The base model, we will use, is "sales-english" that has been trained on 200+ english documents containing distributor data and with a large range of different layouts.

The base model already recognize some entities such as DATE and NUMBER. We will setup the model to add one new entity PRODUCTNAME and we will configure a layex to extract the different elements of the documents. You can find more details about layex.

REPO_BASE_URL = "https://raw.githubusercontent.com/RomualdRousseau/Any2Json-Models/main"
MODEL_NAME = "sales-english"
FILE_PATH = "data/document with multiple tables.xlsx"
FILE_ENCODING = "UTF-8"


builder = pyarchery.model_from_uri(f"{REPO_BASE_URL}/{MODEL_NAME}/{MODEL_NAME}.json")

entities = [v for v in builder.getEntityList() if v != "PACKAGE"]
entities.append("PRODUCTNAME")

patterns = {k: v for (k, v) in builder.getPatternMap().items() if v != "PACKAGE"}
patterns["\\D+\\dml"] = "PRODUCTNAME"

parser = pyarchery.LayexTableParser(
    ["(v.$)+"], ["(()(S+$))(()([/^TOTAL/|v].+$)())+(/TOTAL/.+$)"]
)

model = (
    builder.setEntityList(entities)
    .setPatternMap(patterns)
    .setTableParser(parser)
    .build()
)

Load the document

We load the document by creating a document instance with the model and options to parse the document. The hint "pyarchery.INTELLI_LAYOUT" will tell the document instance that the document has a complex layout. The recipe "sheet.setCapillarityThreshold(0)" will tell the parser engine to extract the features as small as possible. And finally we want the tag case to be in snake case notation:

with pyarchery.load(
    FILE_PATH,
    encoding=FILE_ENCODING,
    model=model,
    hints=[pyarchery.INTELLI_LAYOUT],
    recipe=["sheet.setCapillarityThreshold(0)"],
    tag_case="SNAKE"
) as doc:
    ...

Output the tabular result

Finally, we iterate over the sheets, rows and cells and outpout the data on the console:

    for sheet in doc.sheets:
        table = sheet.table
        if table:
            print(table.to_arrow().to_pandas().to_markdown())

|    | a_document_very_important   | date       | productname   | invoice_date        | client   |   qty |   amount |
|---:|:----------------------------|:-----------|:--------------|:--------------------|:---------|------:|---------:|
|  0 | A document very important   | 2023-02-01 | Product 1ml   | 2023-02-01 12:00:00 | AAA      |     1 |      100 |
|  1 | A document very important   | 2023-02-01 | Product 1ml   | 2023-02-01 12:00:00 | BBB      |     1 |      100 |
|  2 | A document very important   | 2023-02-01 | Product 1ml   | 2023-02-01 12:00:00 | BBB      |     3 |      300 |
|  3 | A document very important   | 2023-02-01 | Product 1ml   | 2023-02-01 12:00:00 | AAA      |     1 |      100 |
|  4 | A document very important   | 2023-02-01 | Product 2ml   | 2023-02-01 12:00:00 | AAA      |     1 |      100 |
|  5 | A document very important   | 2023-02-01 | Product 2ml   | 2023-02-01 12:00:00 | BBB      |     2 |      200 |
|  6 | A document very important   | 2023-02-01 | Product 2ml   | 2023-02-01 12:00:00 | CCC      |     4 |      400 |
|  7 | A document very important   | 2023-02-01 | Product 2ml   | 2023-02-01 12:00:00 | DDD      |     1 |      100 |
|  8 | A document very important   | 2023-02-01 | Product 3ml   | 2023-02-01 12:00:00 | AAA      |     1 |      100 |
|  9 | A document very important   | 2023-02-01 | Product 3ml   | 2023-02-01 12:00:00 | CCC      |     1 |      100 |
| 10 | A document very important   | 2023-02-01 | Product 3ml   | 2023-02-01 12:00:00 | AAA      |     1 |      100 |
| 11 | A document very important   | 2023-02-01 | Product 3ml   | 2023-02-01 12:00:00 | DDD      |     1 |      100 |

On this output, we print out the graph of the document built during the parsing and we can see clearly the relation between the elements of the spreadsheet and how there are structured in tabular form.

Conclusion

Congratulations! You have loaded documents using PyArchery.

For more examples of using PyArchery, check out the tutorials.
